Series of Star 5

Name of product

Star 5 Plus Domino/Star 5 Plus V12


Information of product

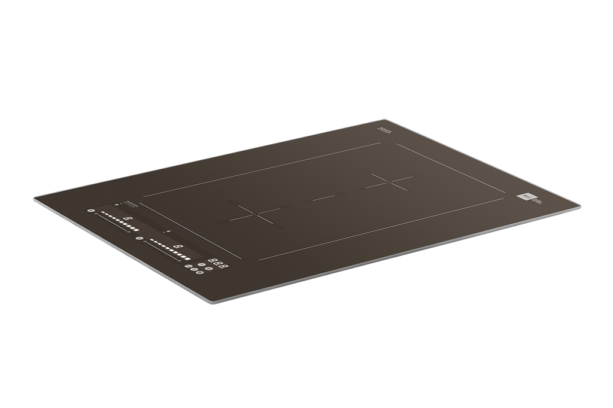

Star 5 Plus Domino

Compact induction stove as an addition to fitted kitchens and ideal for kitchens with limited space. Bridge function for serial connection of two or more cooking zones to one large cooking zone with common controls. Direct, intuitive and simply control of cooking zones by slide-touch control. Thanks to advanced induction technology, the surface remains almost cold and is easy to clean after cooking. SCHOTT CERAN? CLEARTRANS glass ceramic top in refined metallic look for custom-designed and trendy kitchens.

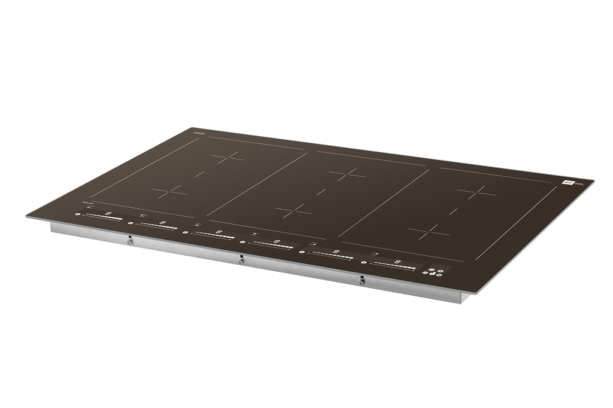

Star 5 Plus V12

Enjoy the versatility of six cooking zones – cook the way the professionals cook. The integrated bridge function transforms the induction cooktop into a professional cooking solution with three temperature zones that allows pots and pans to be placed anywhere on the surface. Direct, intuitive and simply control of cooking zones by slide-touch control. Thanks to advanced induction technology, the surface remains almost cold and is easy to clean after cooking. Premium quality SCHOTT CERAN? CLEARTRANS glass ceramic top in refined metallic look for custom-designed and trendy kitchens.


Functions of product

3 warm settings

Boost function

Bridge function

Residual heat indicator

Timer

Auto-stop

Buzzer

Error display

Auto Power (cooking zone and heat output adapt automatically to pot/pan size)

Key-lock

Digital display panel

Stop & Go function


parameters of product

Star 5 Plus Domino

Colour: transparent grey、 transparent white

Voltage: 220 V–240 V

Frequency: 50 Hz/60 Hz

Current: 16A

Size of cooking zone:

single cooking zone: 240 ×190 mm

bridging cooking zone: 240 × 380 mm

Power of cooking zone:

both front and back cooking zone: 2,100 W

bridging cooking zone: 3,700 W

boost function in both cooking zones: 3,700 W

Minimal induction area:

single cooking zone: ? 90 mm

bridging cooking zone: ? 220 mm

Surface type: SCHOTT CERAN? CLEARTRANS

Surface temperature: none

Input power regulation: 0-9 power level, boost function

Method of control: sliding touch control

Method of use: build-in

size of panel: 520 × 380 × 4 mm

Size of product: 520 × 380 × 52 mm

Size of cut-out: 495 (±3) × 280 (±3) mm

Weight: 6kg


Star 5 Plus V12

Colour: transparent grey

Voltage: 220 V–240 V

Frequency: 50 Hz/60 Hz

Current: 3x16A

Size of cooking zone:

single cooking zone: 230 × 190 mm

bridging cooking zone: 230 × 380 mm

Power of cooking zone:

both front and back cooking zone: 2,100 W

bridging cooking zone: 3,700 W

boost function in both cooking zone: 3,700 W

Minimal induction area:

single cooking zone: ? 90 mm

bridging cooking zone: ? 220 mm

Surface type: SCHOTT CERAN? CLEARTRANS

Surface temperature: none

Input power regulation: 0-9 power level, boost function

Method of control: electronic sliding touch energy control

Method of use: built-in

Size of panel: 520 × 800 × 4 mm

Size of product: 520 × 800 × 52 mm

Size of cut-out: 495 (±3) × 750 (±3) mm

Weight: 15.1 kg
